LITE-NETICS C7 Cord Green Wire – 12″ Spacing – SPT-1 – 250′

LITE-NETICS C7 Cord Green Wire – 12″ Spacing – SPT-1 – 250′

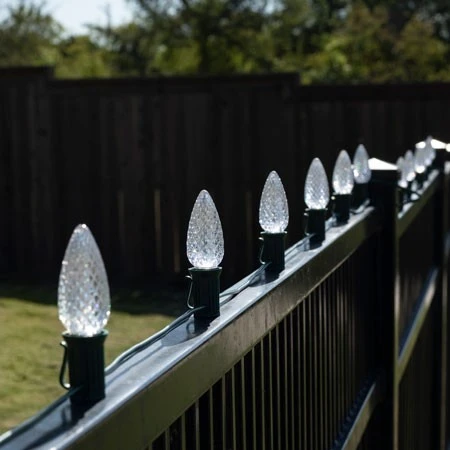

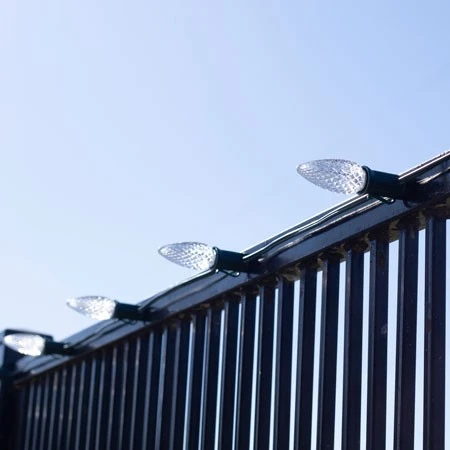

Works with ferrous metals – will not work on Aluminum
Not recommended for surface temperatures that reach 175 degrees Fahrenheit or higher.
 Brand: Lite-netics

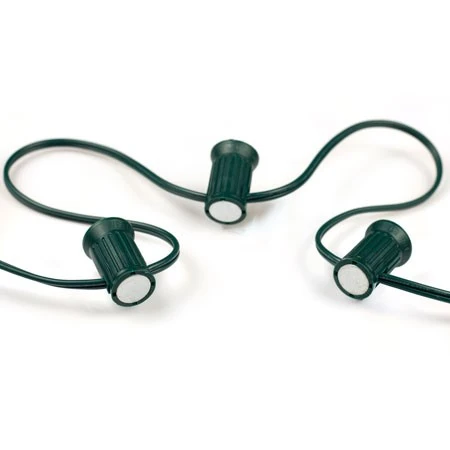

Nickel Protected Magnet – Coating that prevents any rusting
Magnet: High-grade neodymium magnet
 Number of Sockets: 250
 Spacing: 12″
 Socket Type: Candelabra, C7, E12

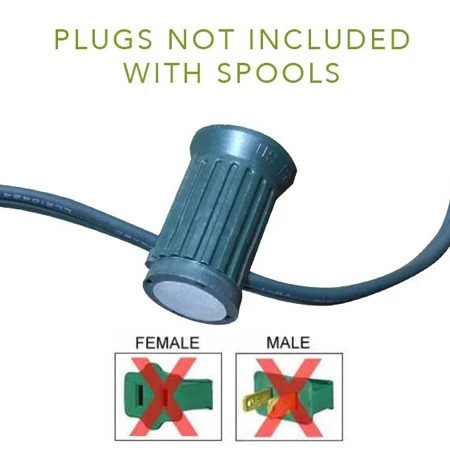

Connection: Plug ends
 Voltage: 110/120
 Wire Length: 250′
 Lead Length: 6″
 Tail length: 6″
 Wire gauge: 18
 Rating: SPT-1 – .03 inch insulation thickness
 UL Rating: indoor and outdoor use



Maximum bulb load:

250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
100 (C9) 7-watt incandescent bulbs
70 (C9) 10-watt incandescent bulbs

Maximum amperage for 18/2 gauge wire:

Up to 50 feet= 10 amps
51-100 feet= 7 amps
101-150 feet= 5 amps
151-200 feet= 3.5 amps*
201-250 feet= 2.5 amps*

*= Only used for C7/C9 perimeter lighting applications

Frequently Asked Questions
Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?
Some people simply fold the cord over into a small, 1″ loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.

What is the magnetic pull for lite-netics?
Litenetics uses a high-grade neodymium magnet which is the strongest rare earth magnet for it’s size.  The pull strength is directly related to the surface it is adhering to.  For example, the pull force is much higher off of a steel I-beam than off a thin metal flashing. Additionally, a C9 strand has been tested on the hood of a vehicle (specifically a pick up truck) and was able to withstand speeds up to 65mph.
